Aircraft Flight Control Surfaces: Types and Functions

The purpose of flight controls is to allow the pilot to maneuver an airplane and control it from the time it starts the takeoff roll until it lands and safely comes to a halt. Flight controls are typically associated with the wings and the vertical and horizontal stabilizers because these are the parts of the airplane to which flight controls are most often attached.

In flight, and to some extent on the ground, flight controls allow the airplane to move around one or more of its three axes. They function by changing the shape or aerodynamic characteristics of the surfaces to which they are attached.

The primary flight controls are the ailerons, elevator, and rudder. These control movement around the airplane’s longitudinal, lateral, and vertical axes, respectively. Other devices, such as trim tabs, flaps, and slats, assist with control or modify the wing’s lift and drag characteristics.

Table of Contents

Flight Controls and the Lateral Axis

The lateral axis of an airplane is a line that runs from wingtip to wingtip, passing through the airplane’s center of gravity. Movement around this axis is called pitch, and control around this axis is called longitudinal control.

The flight control that handles this movement is the elevator, which is attached to the horizontal stabilizer. Some airplanes use a fully moving horizontal stabilizer, known as a stabilator. On a V-tail-configured airplane, the combined control surfaces are called ruddervators.

An elevator on a Cessna 182 can be seen in Figure 1.

Rear view of a Cessna 182 aircraft showing the elevator on the horizontal stabilizer, which controls aircraft pitch
Figure 1. Elevator on a Cessna 182 provides pitch control

In Figure 2, a fully moving horizontal stabilizer, known as a stabilator, can be seen on a Piper Cherokee Cruiser PA-28-140. Figure 3 shows ruddervators on a Beechcraft Bonanza.

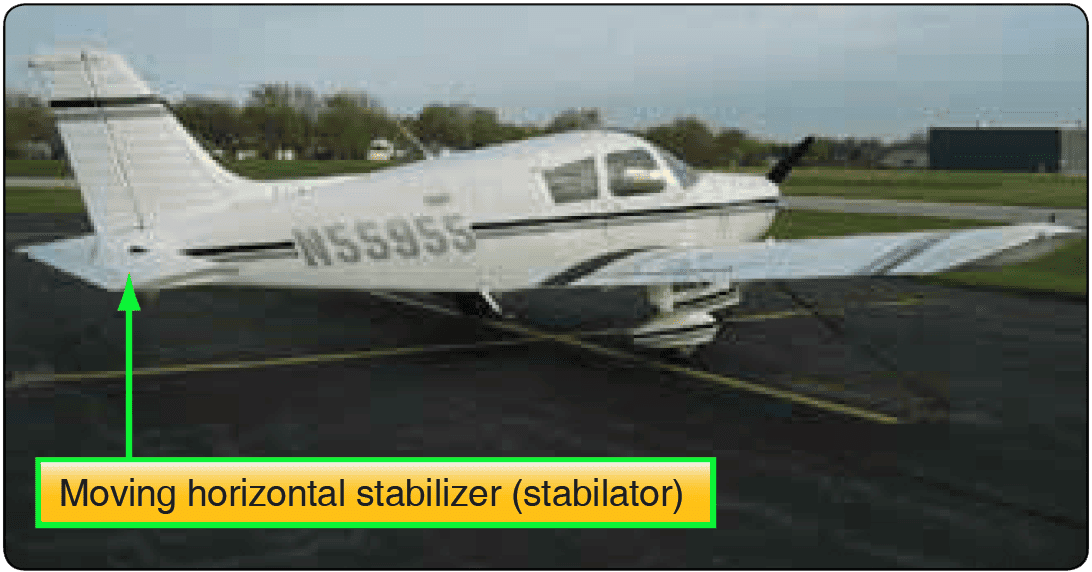

Piper Cherokee Cruiser PA-28-140 aircraft showing its movable horizontal stabilizer, or stabilator, used for pitch control
Figure 2. Moving horizontal stabilizer, known as a stabilator, on a Piper Cherokee Cruiser PA-28-140 provides pitch control

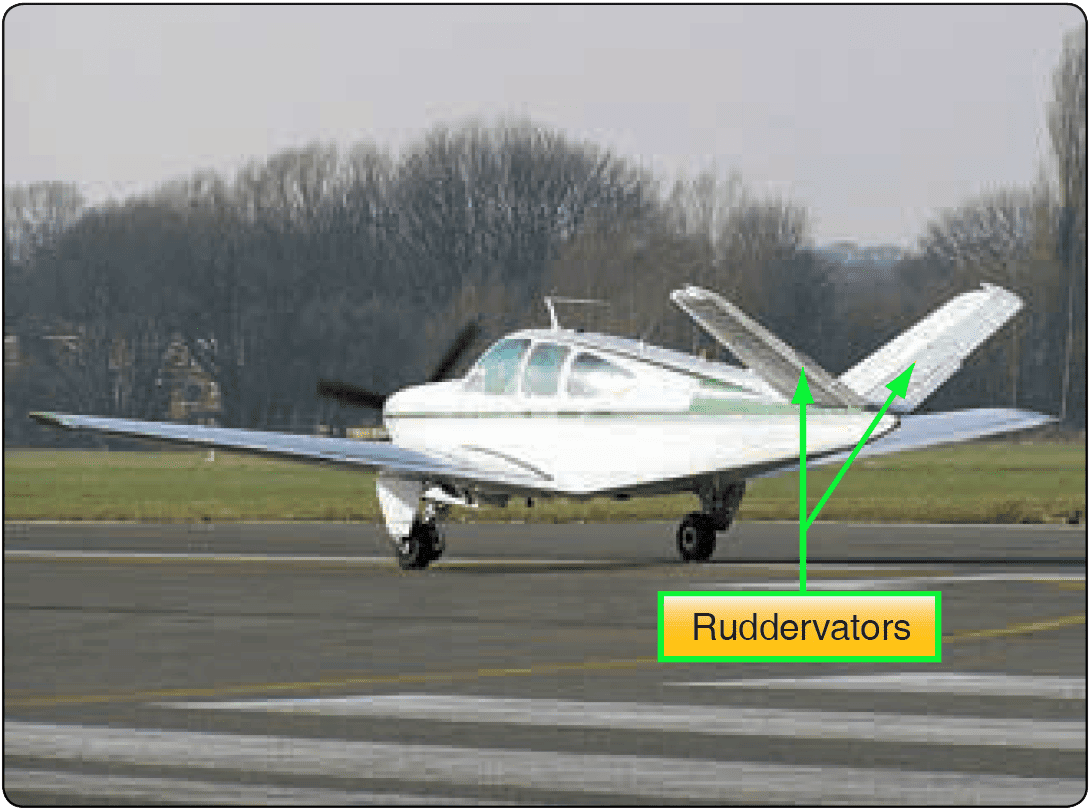

Beechcraft Bonanza aircraft showing ruddervators on the V-tail, which combine pitch and yaw control functions
Figure 3. Ruddervators on a Beechcraft Bonanza provide pitch control.

Depending on the airplane, movement around the lateral axis is controlled by the pilot moving the control wheel or yoke, control stick, or, on some airplanes, a side stick. The airplanes shown in Figures 6 and 7 use a control wheel or yoke.

On the Cessna 182 shown in Figure 1, pulling back on the control wheel causes the trailing edge of the elevator to deflect upward. This increases the downward aerodynamic force on the tail, producing a nose-up pitching moment. Moving the elevator in the opposite direction produces a nose-down pitching moment. The airplane pitches around its lateral axis. The Cessna 182 control wheel can be seen in Figure 4.

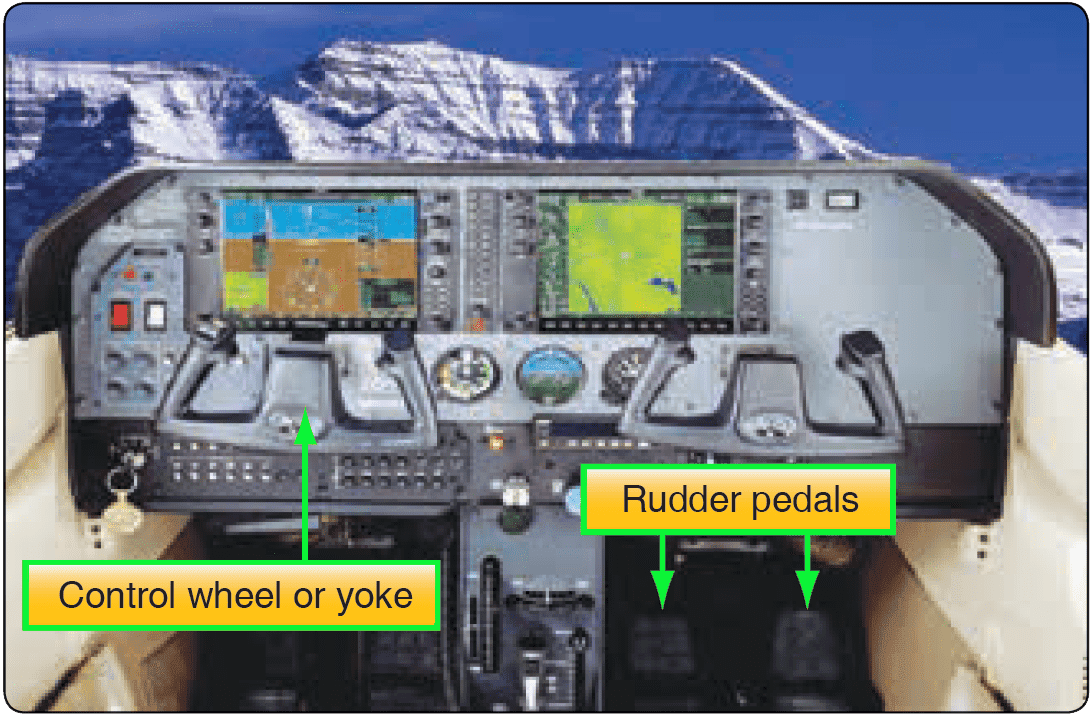

Cessna 182 cockpit showing the control wheel or yoke and rudder pedals used to operate the aircraft flight controls
Figure 4. Cessna 182 control wheel and rudder pedals

On the Piper Cherokee Cruiser PA-28-140 shown in Figure 2, pulling back on the control wheel causes the entire horizontal surface, or stabilator, to move, with its trailing edge deflecting upward. The anti-servo tab on the Cherokee provides a control feel similar to that experienced when moving a conventional elevator. Without this tab, the stabilator might be too easy to move, and the pilot could overcontrol the airplane.

The ruddervators shown on the Beechcraft Bonanza in Figure 3 are also moved by the control wheel, with their trailing edges deflecting upward when the control wheel is pulled back. As their name implies, these surfaces also act as the rudder for this airplane.

Flight Controls and the Longitudinal Axis

The longitudinal axis of an airplane runs through the middle of the airplane, from nose to tail, passing through the center of gravity. Movement around this axis is known as roll, and control around this axis is called lateral control.

Movement around this axis is controlled by the ailerons. On jet transport airplanes, this movement is also assisted by wing-mounted surfaces known as spoilers.

The ailerons move as a result of the pilot rotating the control wheel to the left or right, much like turning the steering wheel of an automobile (Figure 4).

When a pilot turns the control wheel to the left, the airplane is commanded to bank to the left. The trailing edge of the aileron on the left wing rises into the airstream, while the aileron on the right wing lowers. This decreases lift on the left wing and increases lift on the right wing, causing the airplane to roll to the left.

In Figure 5, an aircraft can be seen performing an aileron roll. Notice that the left aileron is up and the right aileron is down, causing the airplane to roll around the longitudinal axis in a counterclockwise direction as viewed from the aircraft’s rear.

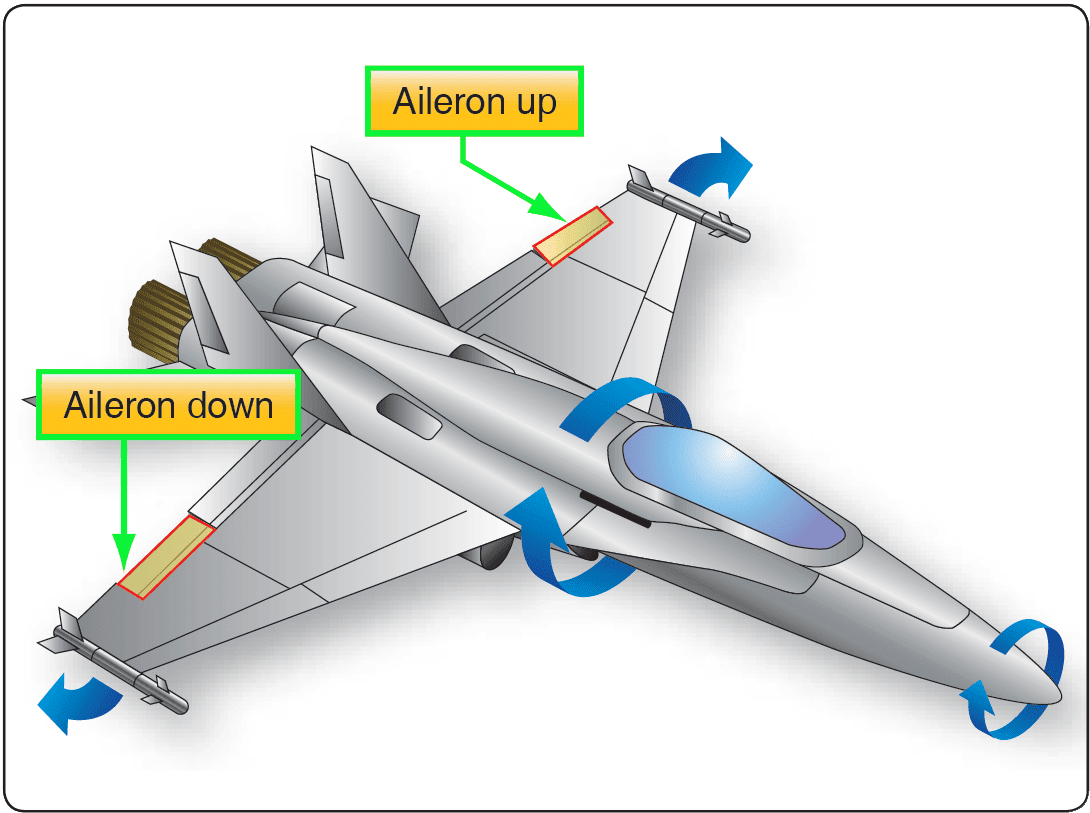

Diagram of an aircraft performing an aileron roll, showing one aileron deflected upward and the opposite aileron deflected downward
Figure 5. Aircraft performing an aileron roll

Flight Controls and the Vertical Axis

The vertical axis of an airplane runs from top to bottom through the middle of the airplane, passing through the center of gravity. Movement around this axis is known as yaw, and control around this axis is called directional control.

Movement around this axis is controlled by the rudder or, in the case of the Beechcraft Bonanza shown in Figure 3, by the ruddervators.

The pilot’s feet rest on the rudder pedals. Pushing the right rudder pedal causes the rudder’s trailing edge to move to the right, and the nose of the airplane yaws to the right. Pushing the left rudder pedal produces the opposite effect. The rudder pedals of a Cessna 182 can be seen in Figure 4.

Although the rudder causes the nose of the airplane to yaw to the left or right, the rudder alone is not what normally produces a coordinated turn. Both the ailerons and rudder are used.

For example, to turn the airplane to the right, the pilot turns the control wheel to the right. This raises the right aileron and lowers the left aileron, initiating the bank. The increased lift on the left wing also increases its induced drag. This drag tends to make the nose of the airplane yaw to the left, a condition known as adverse yaw.

To counteract this tendency, the pilot applies a small amount of right rudder to help keep the airplane coordinated. The amount of rudder required depends on the airplane and the flight condition. The pilot adjusts rudder input as necessary throughout the turn. The rudder of a Piper Cherokee Arrow can be seen in Figure 6.

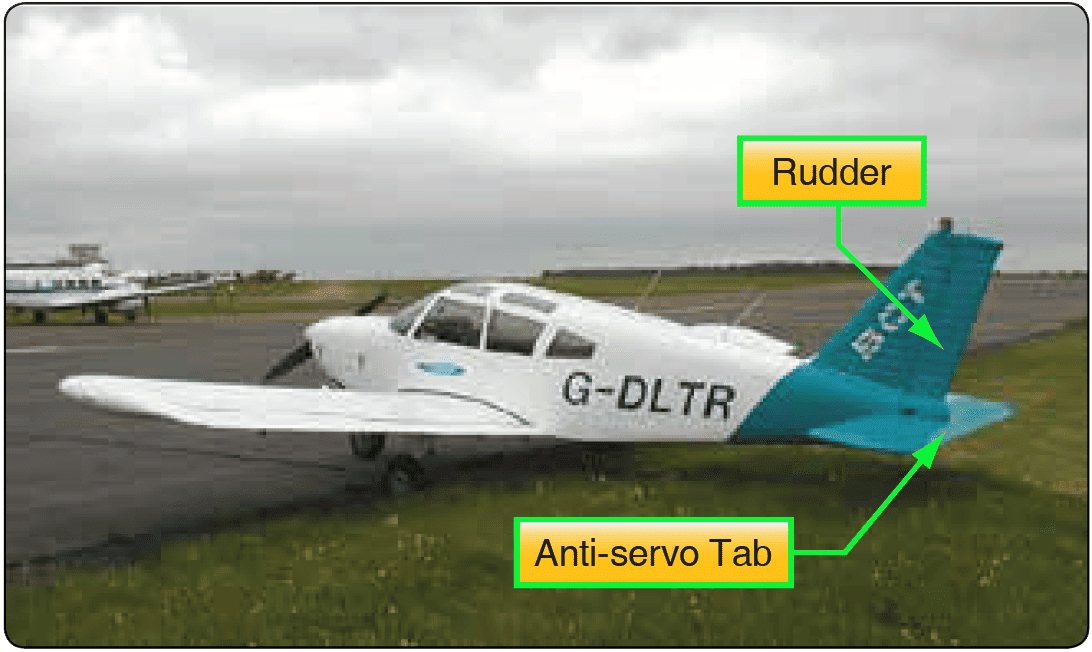

Piper Cherokee Arrow aircraft showing the rudder and anti-servo tab on the vertical stabilizer
Figure 6. Rudder and anti-servo tab on a Piper Cherokee Arrow

Tabs

Tabs are small movable surfaces attached to the trailing edge of flight control surfaces. They change the aerodynamic force acting on the primary control surface and can reduce the force required from the pilot or help hold a control surface in a desired position. Different types of tabs serve different purposes.

Trim Tabs

Trim tabs are small movable surfaces that attach to the trailing edge of flight controls. They can be controlled from the flight deck, and their purpose is to create an aerodynamic force that helps hold the flight control in a deflected position. Trim tabs can be installed on primary flight controls.

A common flight control fitted with a trim tab is the elevator. In many conventional airplanes, the center of gravity is located ahead of the aircraft’s neutral point, and the horizontal tail produces a balancing pitching moment. Depending on the airplane’s design and loading condition, the elevator may need to remain deflected to maintain the desired flight attitude.

To relieve the pilot of the need to maintain continuous pressure on the control wheel, an elevator trim tab can be adjusted to create an aerodynamic force that holds the elevator in the required position. An elevator trim tab for a Cessna 182 is shown in Figure 7.

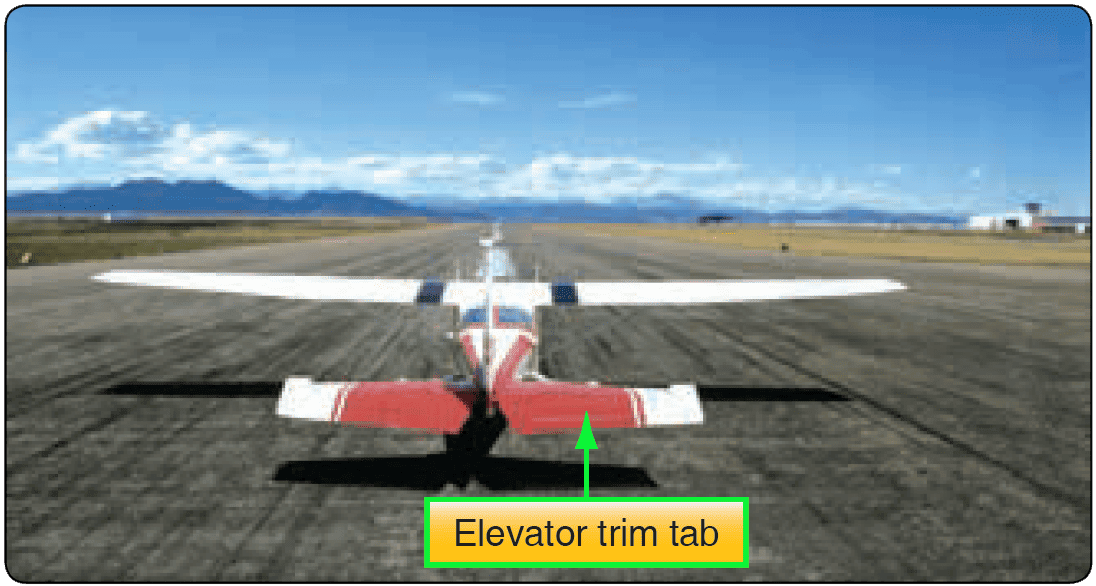

Rear view of a Cessna 182 aircraft showing the elevator trim tab on the horizontal stabilizer
Figure 7. Elevator trim tab on a Cessna 182

Anti-Servo Tabs

Some airplanes, such as the Piper Cherokee Arrow, do not have a fixed horizontal stabilizer and movable elevator. Instead, the Cherokee uses a moving horizontal surface known as a stabilator.

Because of the location of the pivot point for this movable surface, the stabilator can be very sensitive to pilot input. To reduce this sensitivity and provide greater control feel, a full-length anti-servo tab is installed on the trailing edge of the stabilator.

As the trailing edge of the stabilator moves down, the anti-servo tab also moves down and creates an aerodynamic force that opposes the stabilator’s movement. This force increases the effort required to move the stabilator and reduces its sensitivity to pilot input. The anti-servo tab on a Piper Cherokee Arrow is shown in Figure 6.

Balance Tabs

On some airplanes, the force required to move the flight controls can be excessive. In these cases, a balance tab can be used to generate an aerodynamic force that assists in moving the flight control.

Unlike an anti-servo tab, a balance tab moves in the opposite direction to the flight control’s trailing edge. The aerodynamic force acting on the tab helps move the main flight control and reduces the force required from the pilot.

Servo Tabs

On large airplanes, the force needed to move the flight controls may be beyond the capability of the pilot alone. Hydraulic actuators are therefore used to provide the necessary force.

In the event of a hydraulic system malfunction or failure, some airplanes have servo tabs on the trailing edges of their primary flight controls. When the pilot pulls back on the control wheel in an attempt to move the elevator, the servo tab moves and creates enough aerodynamic force to move the elevator.

The servo tab acts somewhat like a balance tab, but rather than simply assisting the normal force used to move the elevator, it can become the primary aerodynamic means of moving the elevator. Like a balance tab, the servo tab moves in the opposite direction to the flight control’s trailing edge.

The Boeing 727 has servo tabs that provide a means of controlling the flight controls in the event of a hydraulic system failure. During normal flight, the servo tabs act like balance tabs (Figure 8).

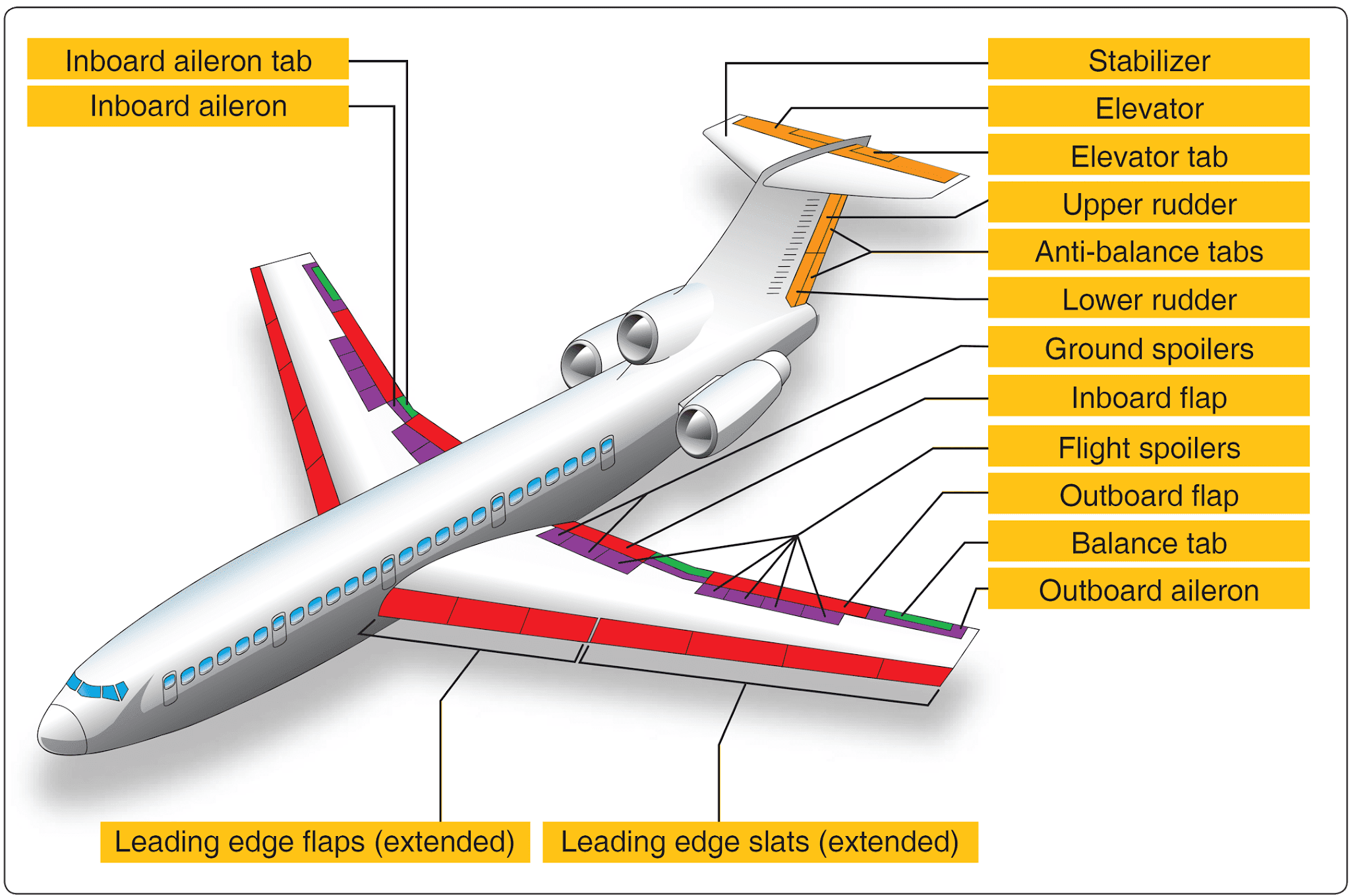

Diagram of Boeing 727 flight control surfaces identifying ailerons, flaps, spoilers, stabilizer, elevator, rudder, and trim tabs
Figure 8. Boeing 727 flight controls

Supplemental Lift-Modifying Devices

If the wing of an airplane were designed to produce the maximum lift possible at low airspeed to accommodate takeoffs and landings, it would not be well suited for higher-speed flight because of the large amount of drag it would produce.

To give the wing the ability to produce increased lift at low airspeeds without creating excessive drag during normal high-speed flight, retractable high-lift devices, such as flaps and slats, are used.

Flaps

One of the most commonly used lift-modifying devices on both small and large airplanes is the wing flap. Flaps can be installed on the leading edge or trailing edge of a wing, although leading-edge flaps are generally used on larger airplanes.

Flaps change the camber of the wing and increase both lift and drag for a given angle of attack. The four common types of trailing-edge flaps are plain, split, slotted, and Fowler flaps (Figure 9).

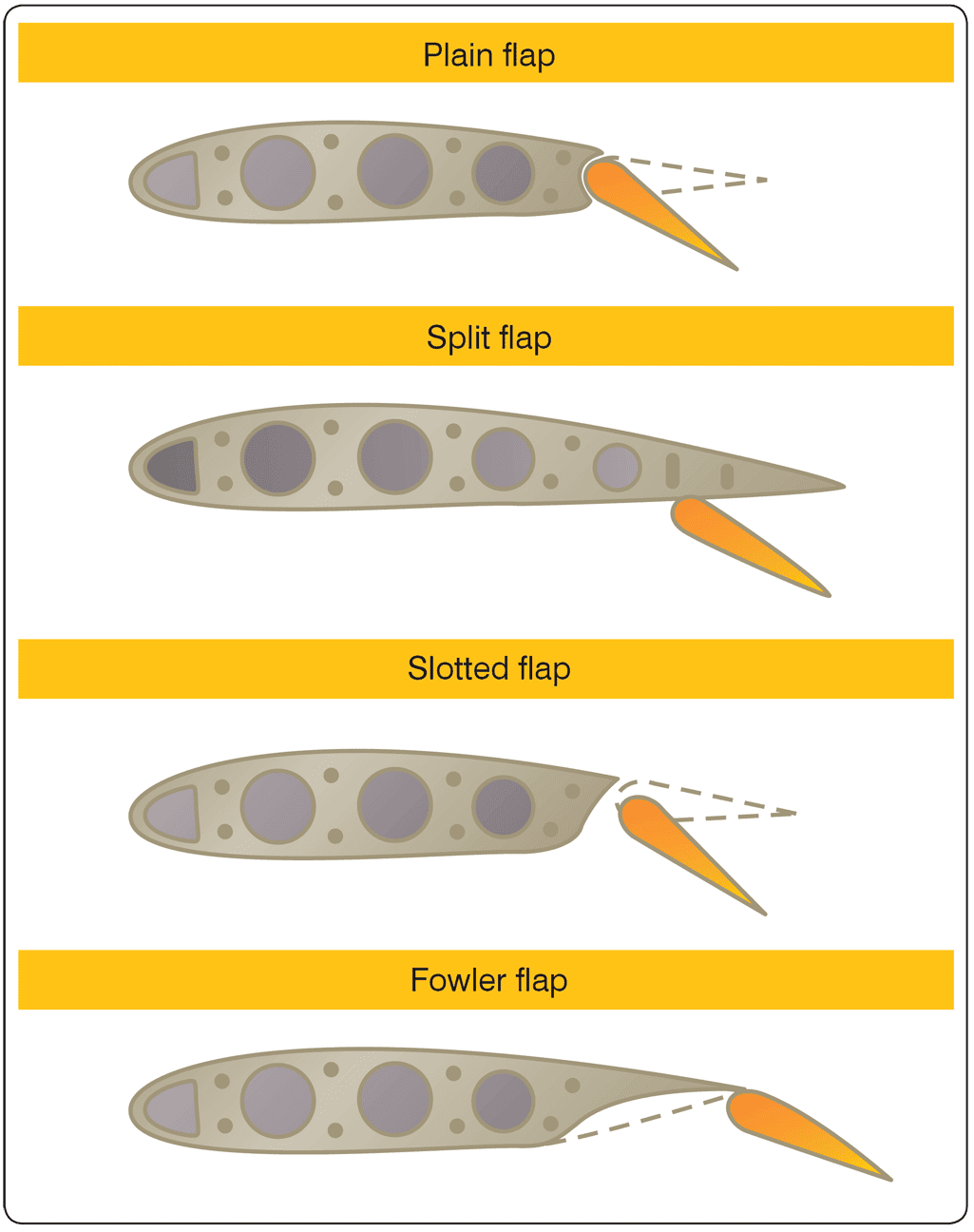

Comparison diagram of four aircraft wing flap designs: plain flap, split flap, slotted flap, and Fowler flap
Figure 9. Four types of wing flaps

Plain Flaps

Plain flaps attach to the trailing edge of the wing, inboard of the ailerons, and form part of the wing’s overall surface. When deployed downward, they increase the effective camber of the wing. This causes the wing to produce more lift and more drag.

Split Flaps

The split flap attaches to the bottom surface of the wing and deploys downward without changing the upper surface of the wing. This type of flap creates more drag than a plain flap because of the additional turbulence and flow separation associated with its deployment.

Slotted Flaps

The slotted flap is similar to the plain flap, except that a gap, or slot, opens between the wing and the flap when the flap is deployed. This slot allows higher-pressure air from the lower surface of the wing to flow through the gap and over the upper surface of the flap. This airflow helps delay flow separation over the flap and allows it to produce additional lift.

Fowler Flaps

The Fowler flap attaches to the rear of the wing using a track-and-roller system. When deployed, it moves aft in addition to deflecting downward. This increases the wing’s effective area and chord, as well as its camber. This type of flap is highly effective at increasing lift and is commonly used on commercial airliners and business jets.

Leading-Edge Slots

Leading-edge slots are ducts or passages in the leading edge of a wing that allow high-pressure air from the lower surface of the wing to flow to the upper surface. This air flows over the upper surface at a relatively high velocity and helps the boundary layer remain attached to the wing at higher angles of attack.

Slots are often placed on the part of the wing ahead of the ailerons. This arrangement can help the inboard part of the wing stall before the outboard part, allowing the ailerons to remain effective for longer as the stall develops.

Leading-Edge Slats

Leading-edge slats serve a similar purpose to slots. The difference is that slats are movable surfaces that can be retracted when they are not needed. When extended, a slat creates a slot between itself and the wing’s leading edge, allowing airflow to pass through and help delay boundary-layer separation.

On some airplanes, leading-edge slats operate automatically, deploying in response to aerodynamic forces that occur at high angles of attack. On many commercial airliners, the leading-edge slats are deployed as part of the high-lift configuration when the trailing-edge flaps are lowered.

Flight Controls of a Boeing 727

The flight controls of a large commercial airliner are shown in Figure 8. The components are identified by color as follows:

  1. All aerodynamic tabs are shown in green.
  2. All leading- and trailing-edge high-lift devices are shown in red. These include the leading-edge flaps and slats, as well as the inboard and outboard trailing-edge flaps.
  3. The tail-mounted primary flight controls are shown in orange. These include the rudder and elevator.
  4. The wing-mounted primary flight controls are shown in purple. These include the inboard and outboard ailerons.
